Activestable: Automated Feeding Systems

CONCENTRATE FEEDING | FORAGE FEEDING | INDIVIDUAL CONTROL | TIME CONTROL

The Activestable feeding systems are developed with scientific findings to create the ideal, individually tailored feeding concept solution for you and your horses.

Feeding is perhaps the most important feature of the Activestable.  For happy healthy horses, besides the quality of feed itself, horses need regular access to food throughout the day.  In traditional systems, feeding is labour intensive however the Active Stable feeding systems saves a lot of time and effort with accurate automation technology.  An added benefit for the horses is the stimulation to exercise in walking between the various feed stations.

Feeding Technology Overview:

Compact

Concentrate feeder

Easy

Concentrate feeder

Compact Select

Concentrate feeder

Single Exclusive

Forage feeder

Double Exclusive

Forage feeder

Combi Exclusive

Forage and Concentrate feeder

Selection Exclusive

Selection system

K-140

Concentrate feeder

Maxi

Forage feeder

Single

Forage feeder

Safety First

Forage feeder

TRANSPONDER  Controlled Feeding

Forage & Concentrates

Every horse wears a unique tracker that communicates with the relevant feeding systems.  This ensures the individual horse receives an appropriate amount of forage and concentrates throughout the day.

  • Tested and proven technology

  • Horse friendly

  • Worn via a neck strap or woven into the hair

Ask a Question

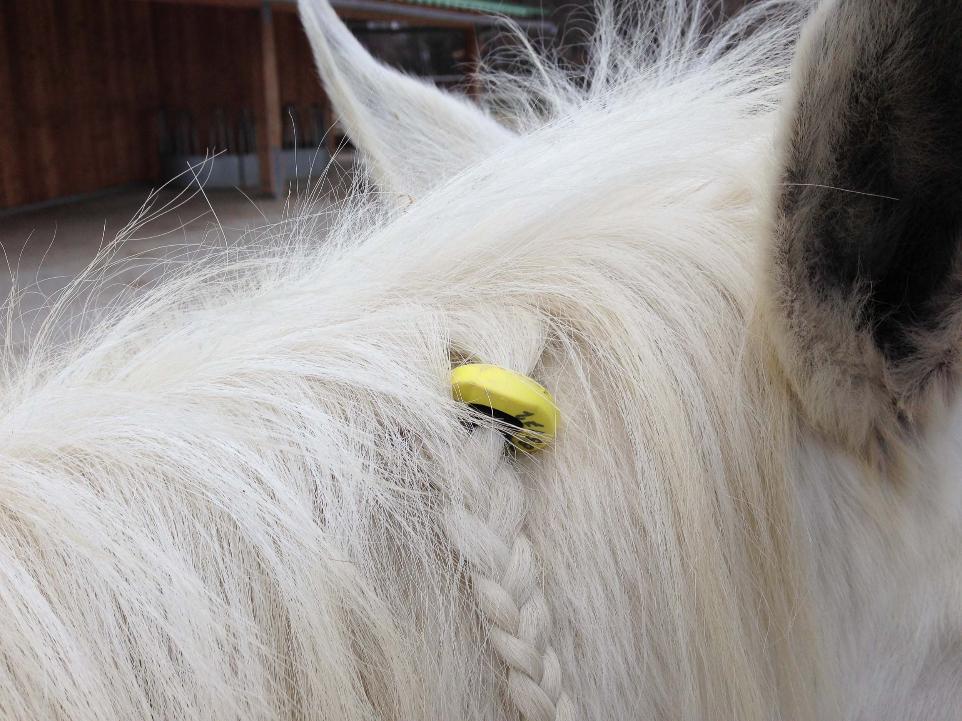

White horse with transponder woven into the hair

Concentrate Feed Stations (Transponder)

Feeding of concentrate feed, minerals and supplements.

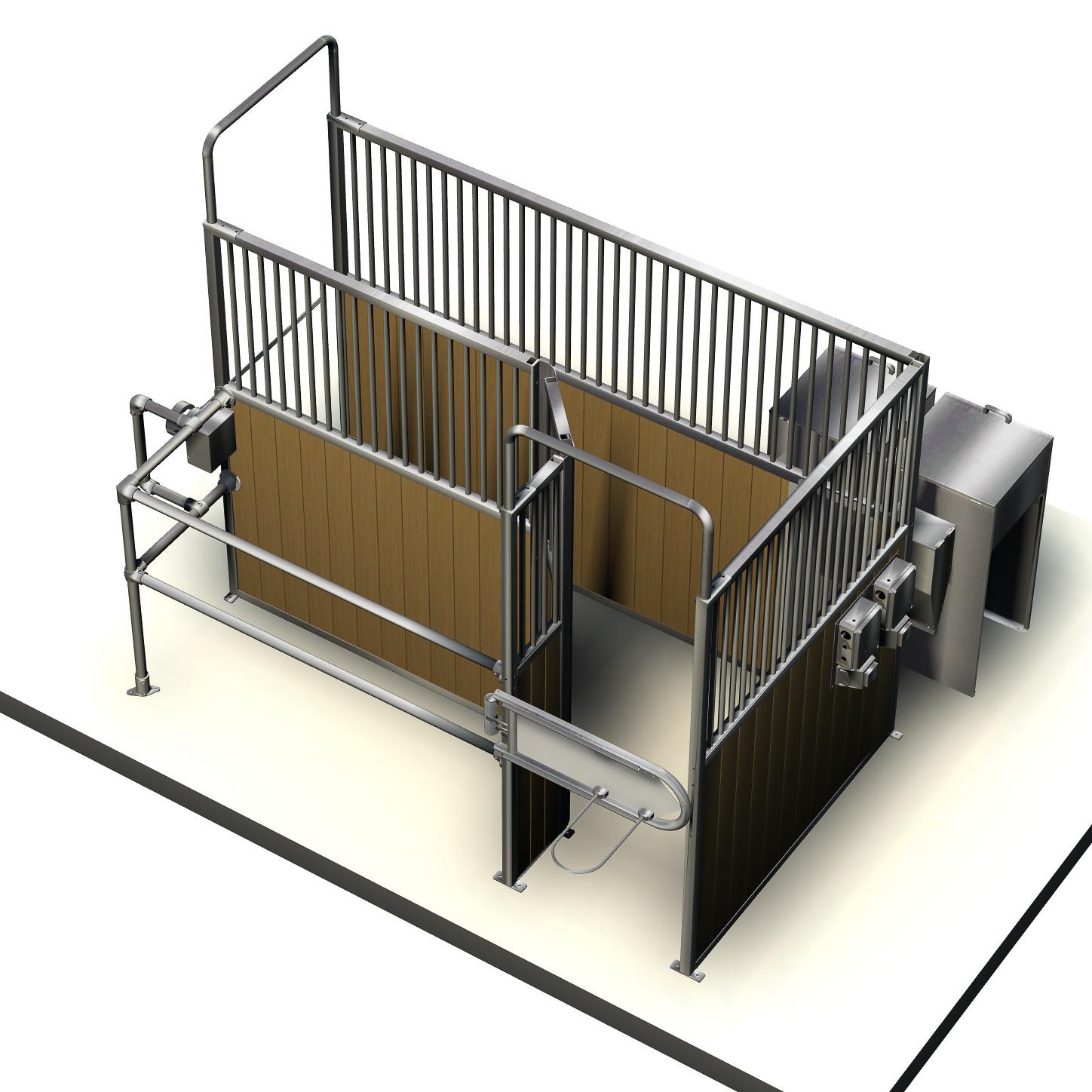

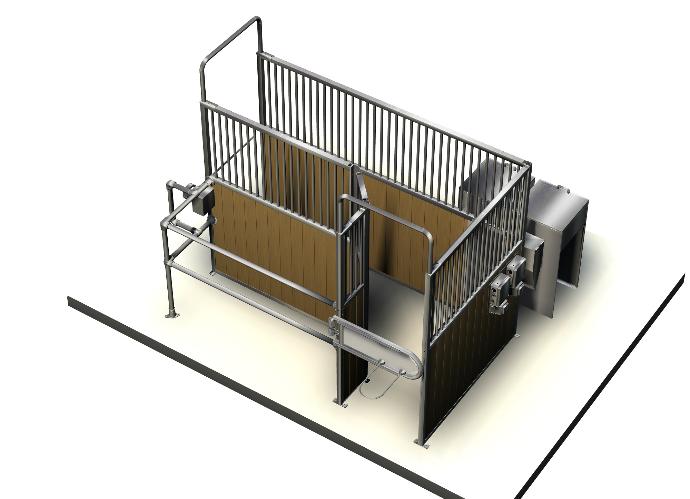

Concentrate feed station Compact

COMPACT

Built for installation in a corner to save space

  • 2x 150 litre feed silos

  • 1x mineral feed 25 litre

  • Wood or plastic guide system and exit

  • Detection electronics

  • Rubber swing door to prevent unauthorised entry

  • Stainless steel trough

  • Operates at 12 volts

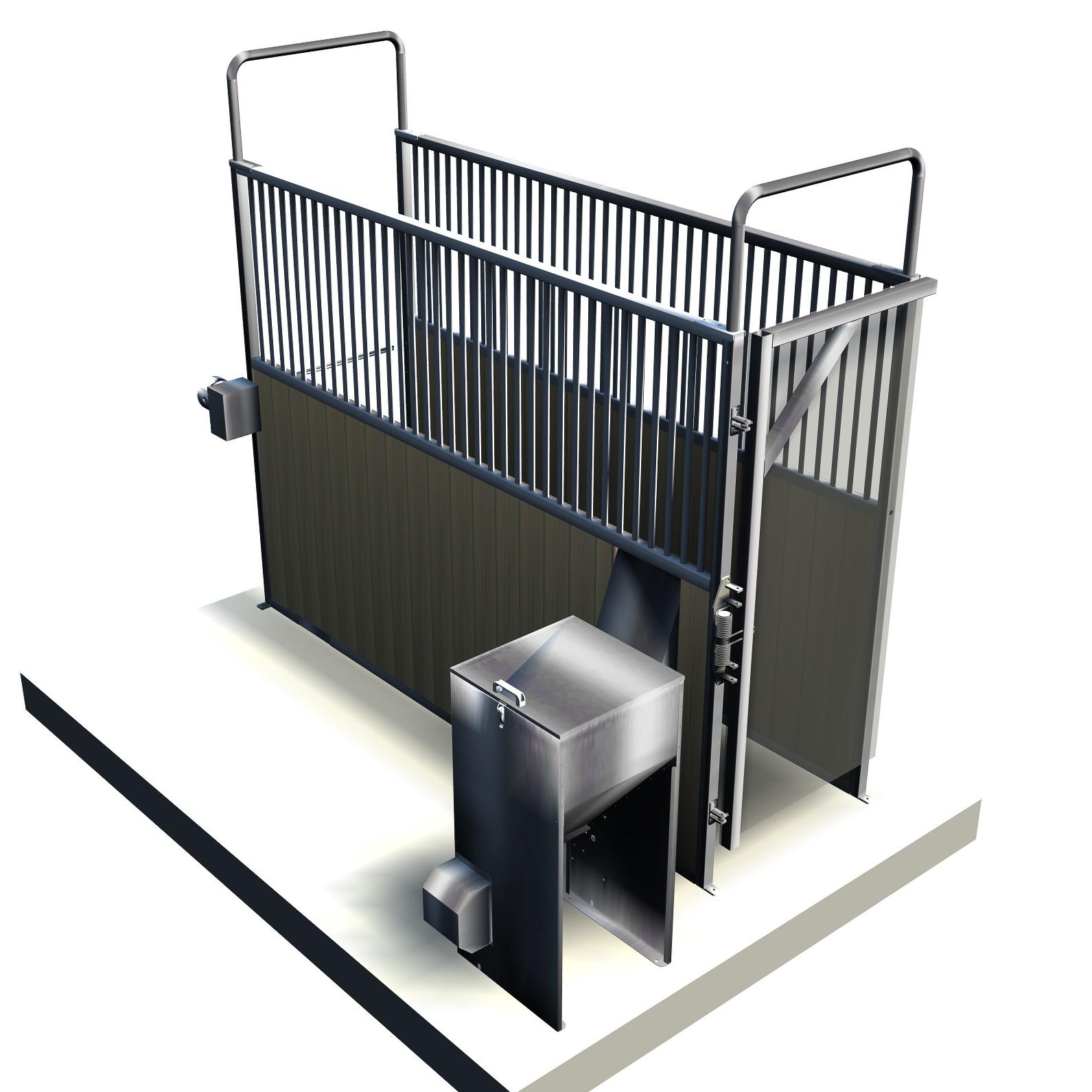

Concentrate feed station Easy

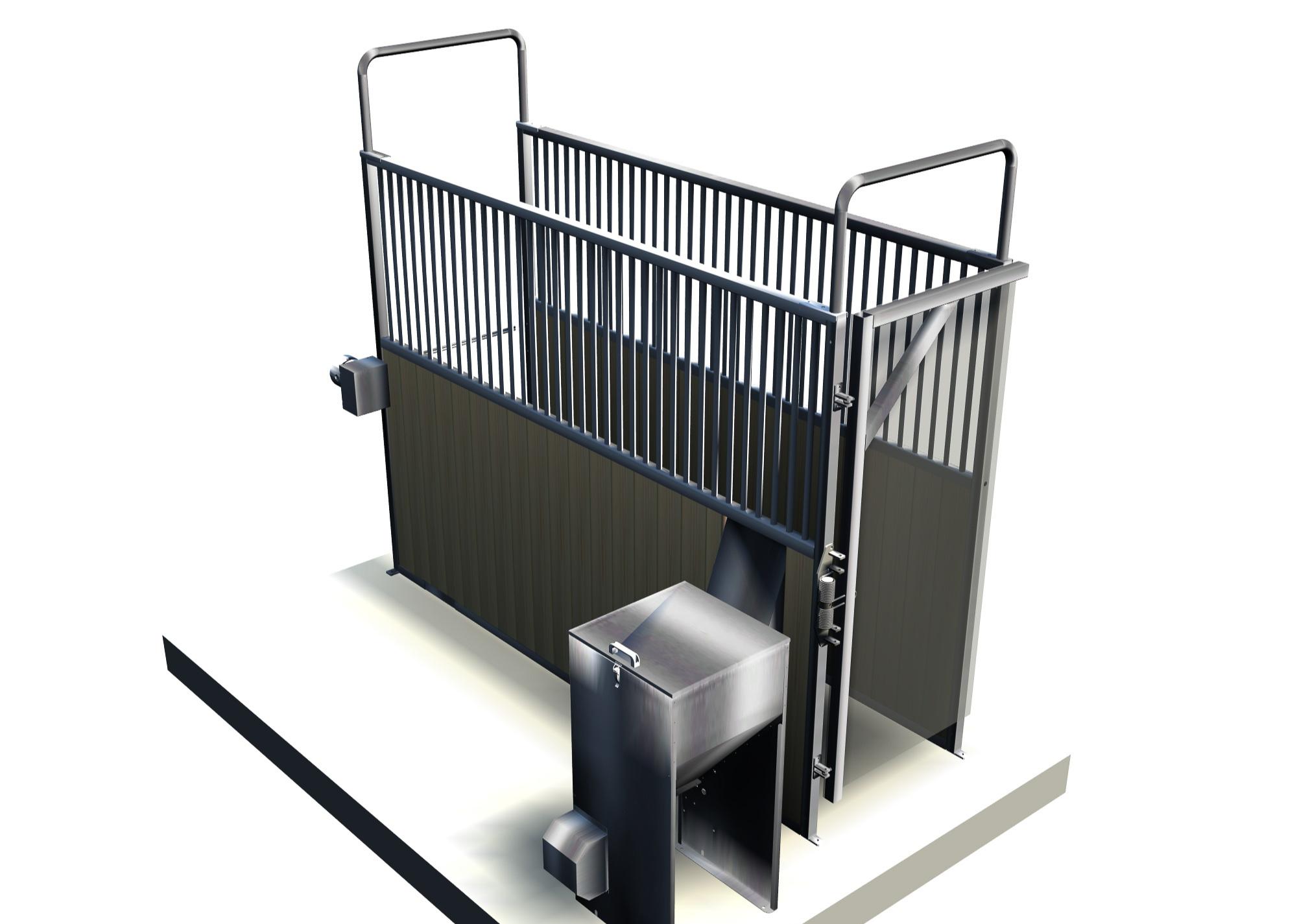

EASY

Straight guide system for straight in/out system easy for horses to see through

  • 2x 150 litre feed silos

  • 1x mineral feed 25 litre

  • Wood or plastic guide system and exit

  • Detection electronics

  • Rubber swing door to prevent unauthorised entry

  • Stainless steel trough

  • Operates at 12 volts

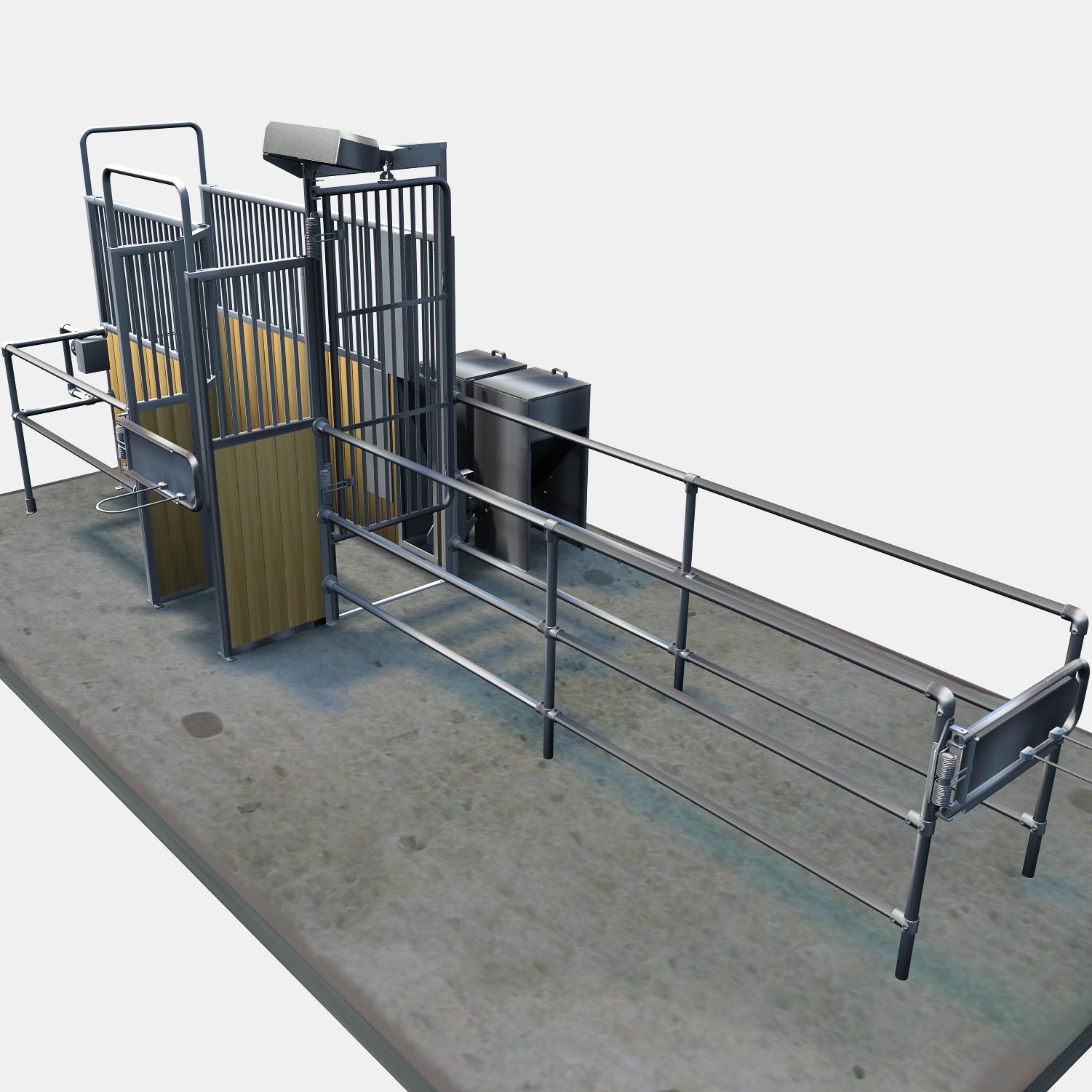

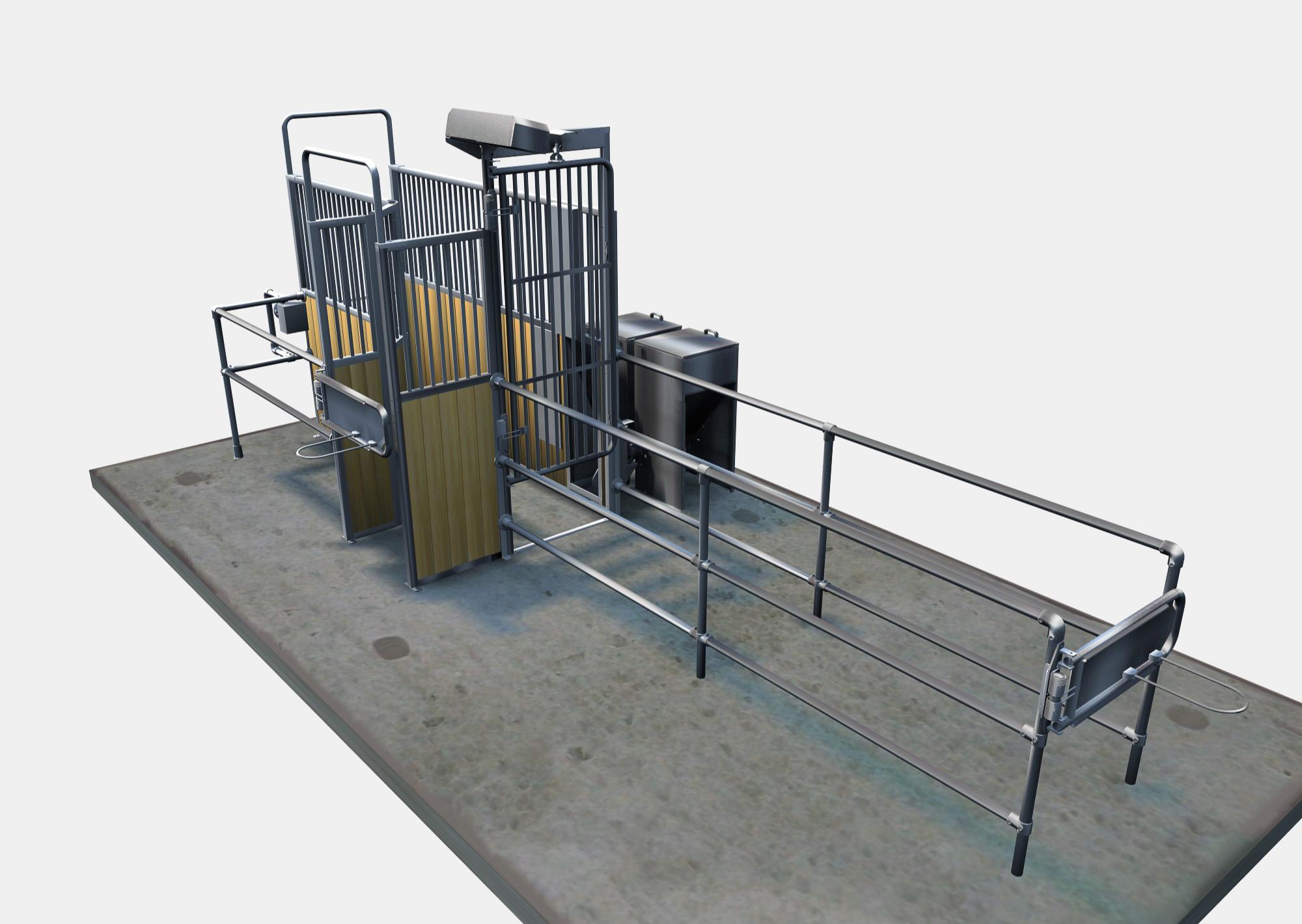

Compact select concentrate feed station

COMPACT-SELECT

Additional horse selection door with inlet sluice to direct horses to different areas

  • 2x 150-litre feed silos

  • 1x mineral feed 25 litre

  • Wood or plastic guide system and exit

  • Detection electronics

  • Rubber swing door to prevent unauthorised entry

  • Stainless steel trough

  • Operates at 12 volts

    Forage Feed Stations (Transponder)

    Feeding of forage such as hay and haylage.

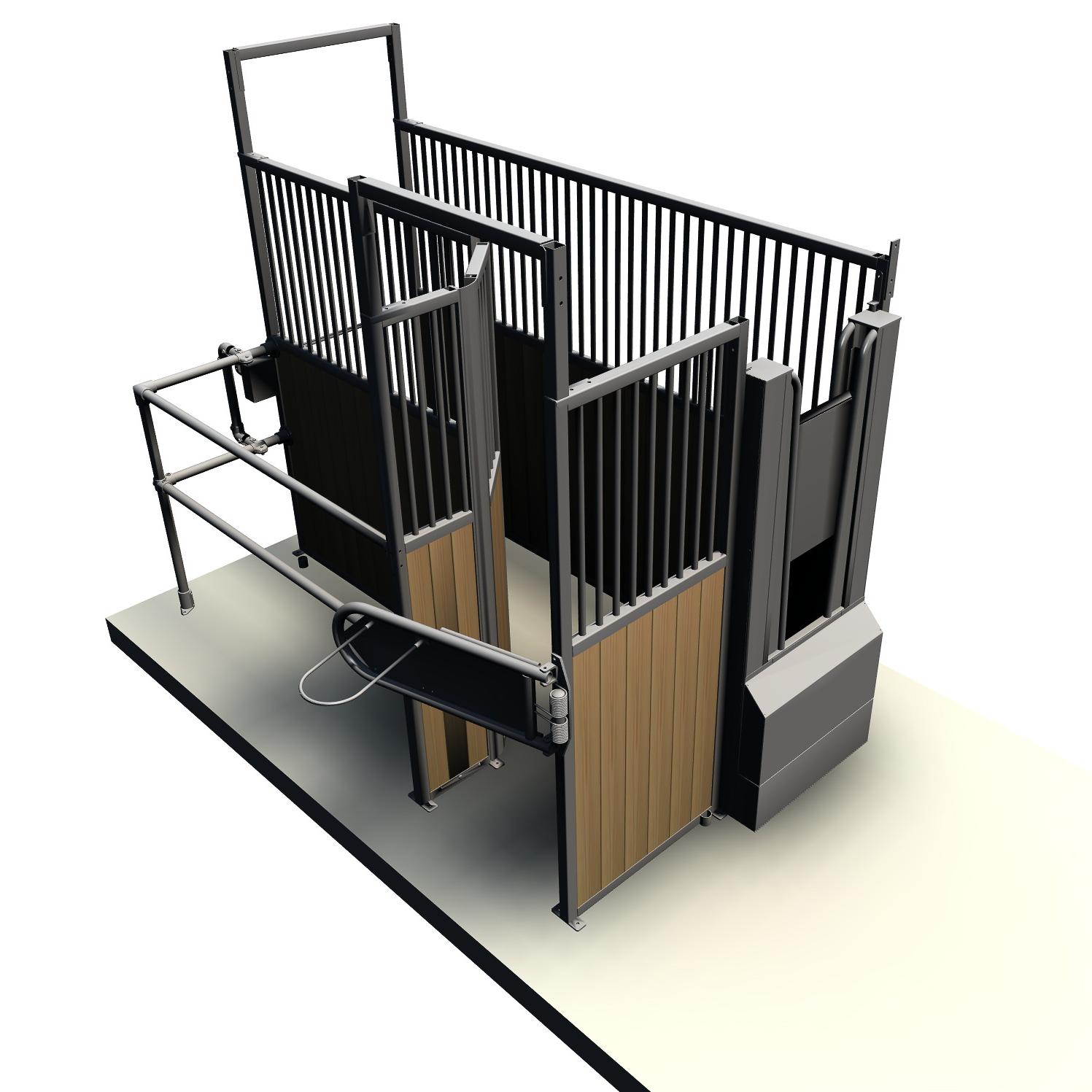

    Forage feed station Exclusive

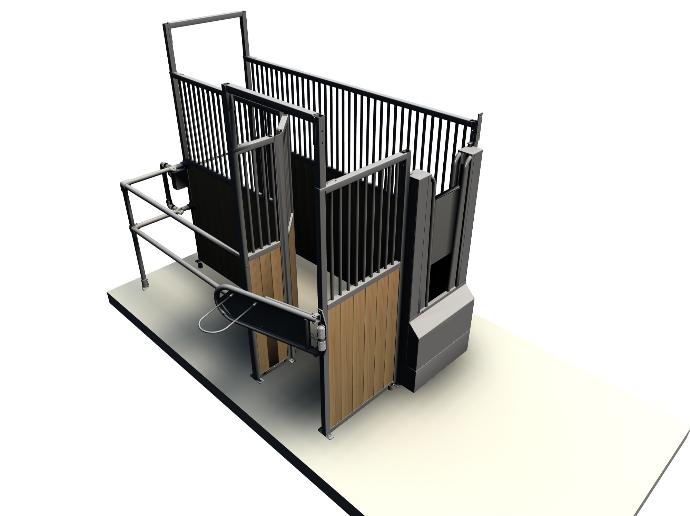

    EXCLUSIVE

    • Single station for up to 4 horses

    • Spruce wood guide system and side exit

    • Decection electronics

    • Rubber swing door to prevent unauthorised entry

    • Ideal for large bales

    • Operates at 12 volts

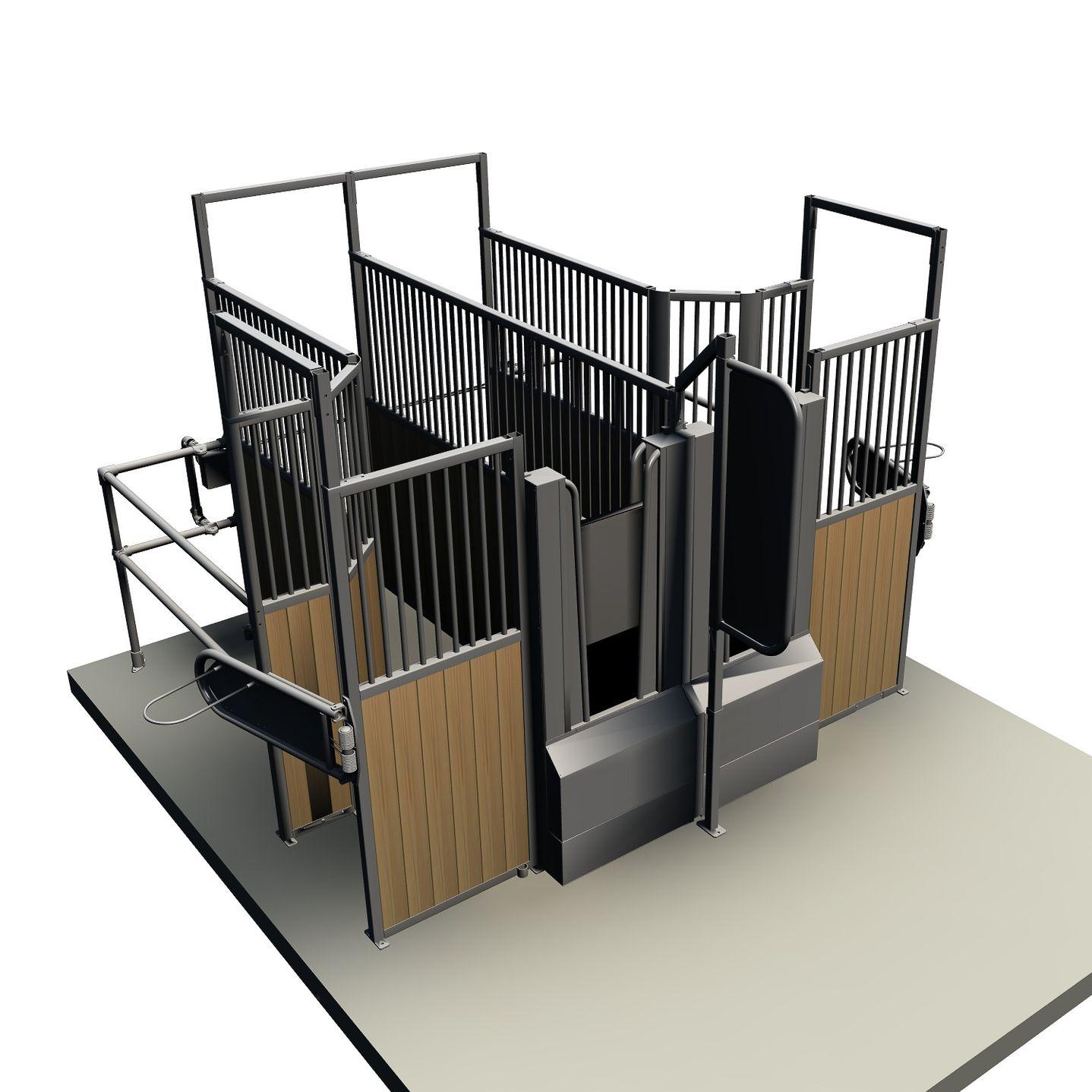

    Forage feeding station double automatic Exclusive

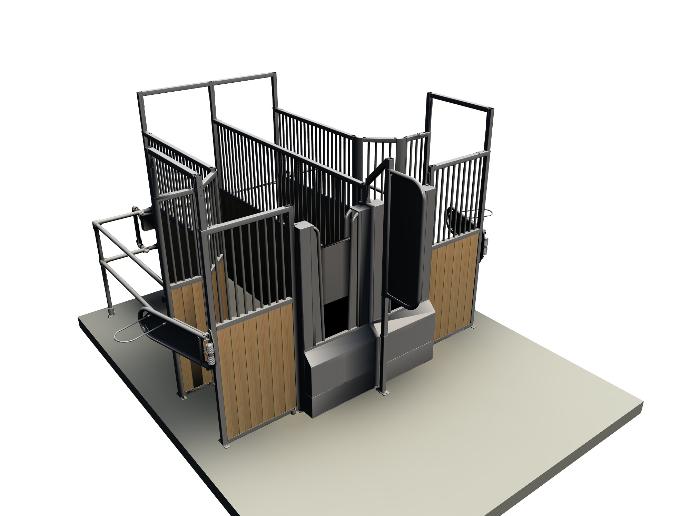

    DOUBLE EXCLUSIVE

    • Duo station for up to 8 horses

    • Spruce wood guide system with side exit

    • Protective screen in the feeding area

    • Detection electronics

    • Rubber swing door to prevent unauthorised entry

    • Operates at 12 volts

    • Ideal for large bales

    Combination Feed Stations

    Feed stations that combine more than one use for example concentrates/forage/selection.

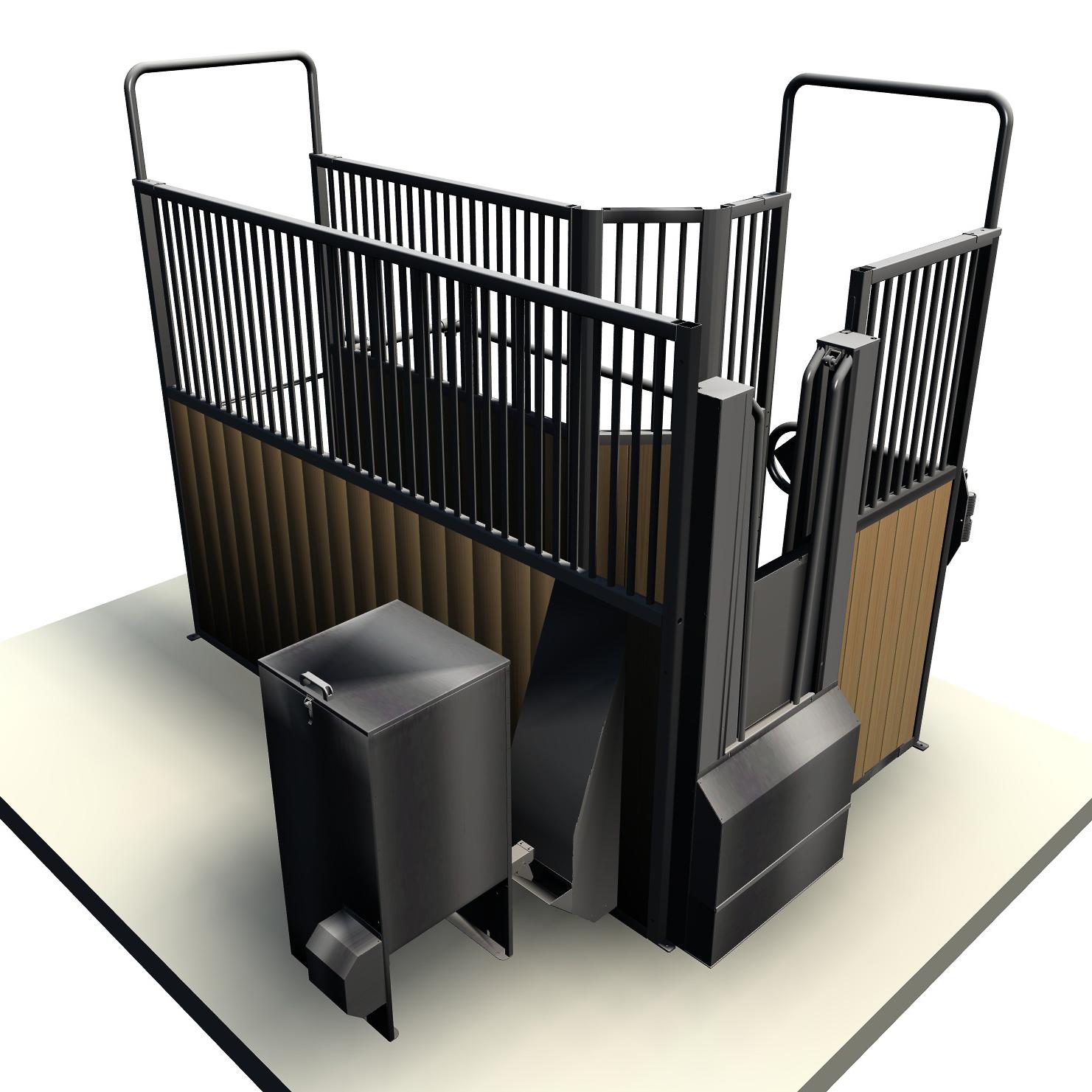

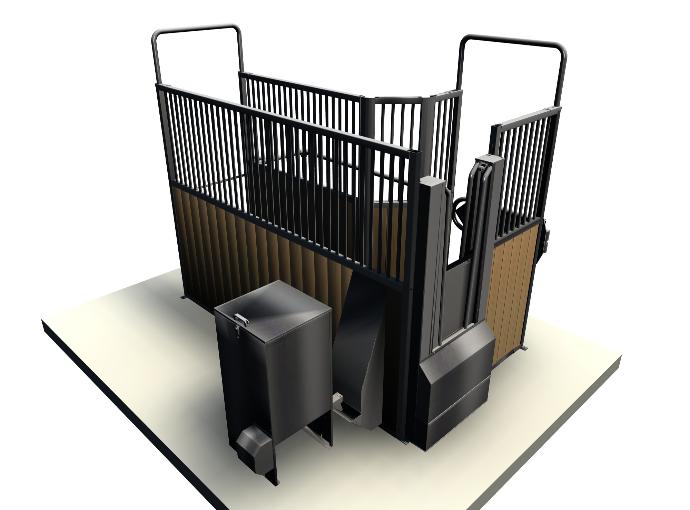

    COMBI-EXCLUSIVE

    Concentrate and forage in one station

    • 1x 150-litre concentrate feed storage container

    • 1x forage feed station

    • Spruce wood straight guide system with a clear exit door

    • Detection electronics

    • Rubber swing door to prevent unauthorised access

    • Stainless steel trough

    • Operates at 12 volts

    Combi Exclusive forage and concentrate automated horse feeder
    Selection System

    Allow passage of specific horses to other areas such as pasture or VIP areas.

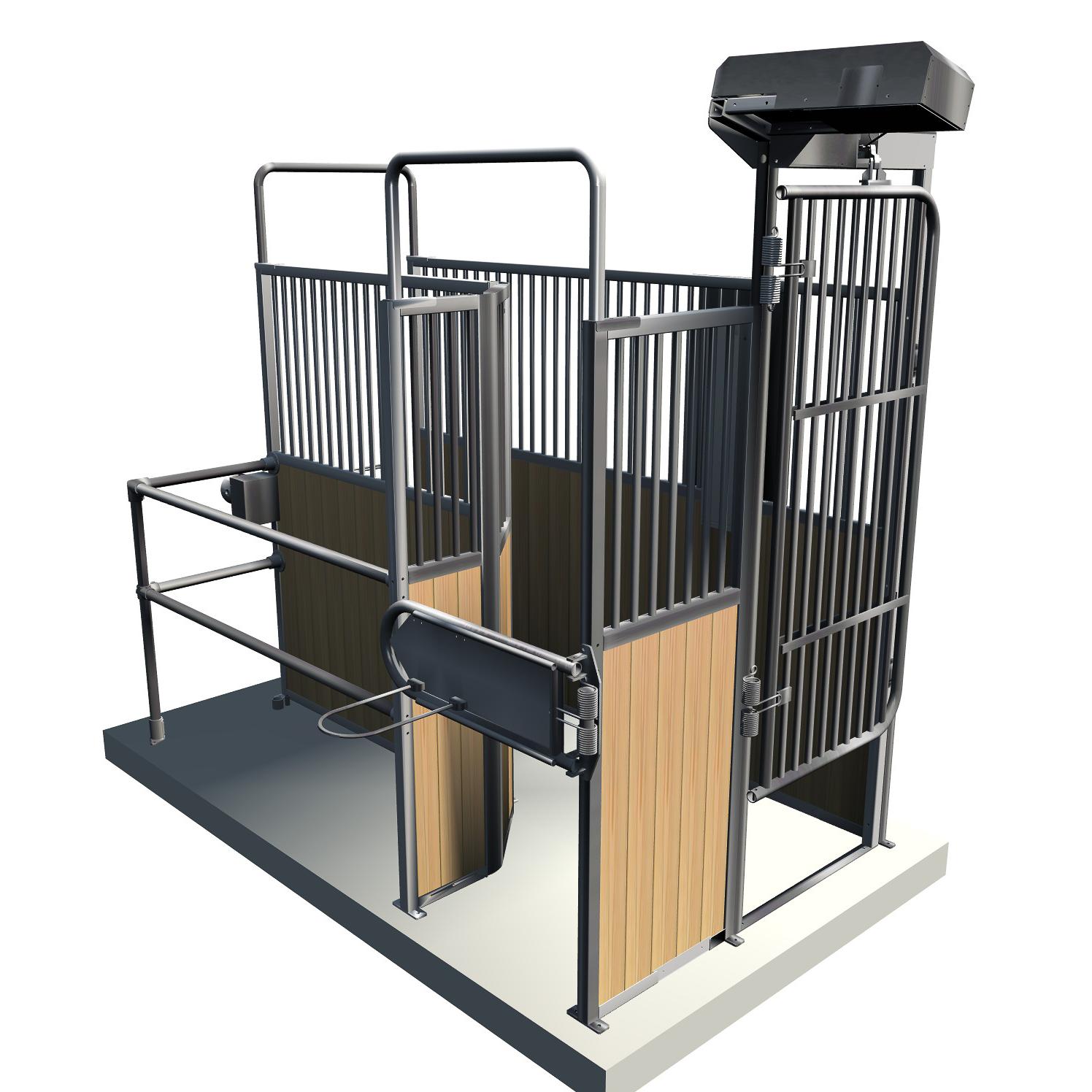

    Selection EXCLUSIVE

    To allow specific horses individual access to forage, pasture or VIP areas

    • Spruce wood guide system and side exit with detection electronics

    • Rubber swing door to prevent unauthorised access

    • Separate entry door

    • Operates at 12 volts

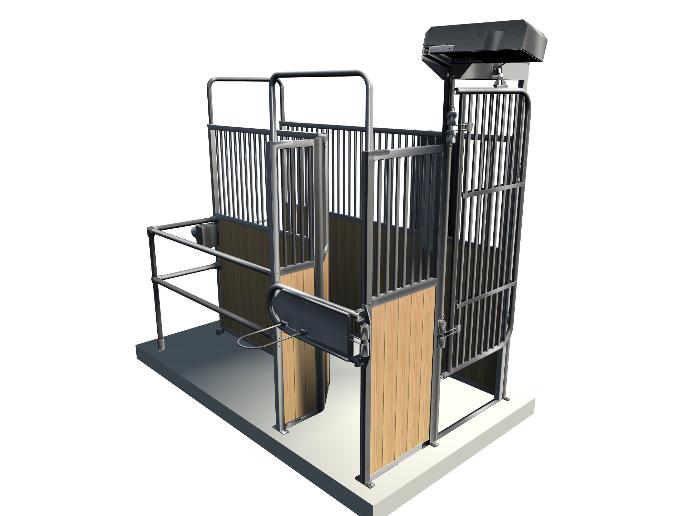

    Selection system exclusive for horses access to areas

    TIME Control Feeding

    Forage | Concentrates

    Time controlled feeding where the system operates at specific times for horses with similar dietary needs.

    • Ideal for small groups of horses and integration pens

    Ask a Question

    Example of a time controlled horse feeder

    Forage Feeding

    Time controlled feeding of forage such as hay and haylage.

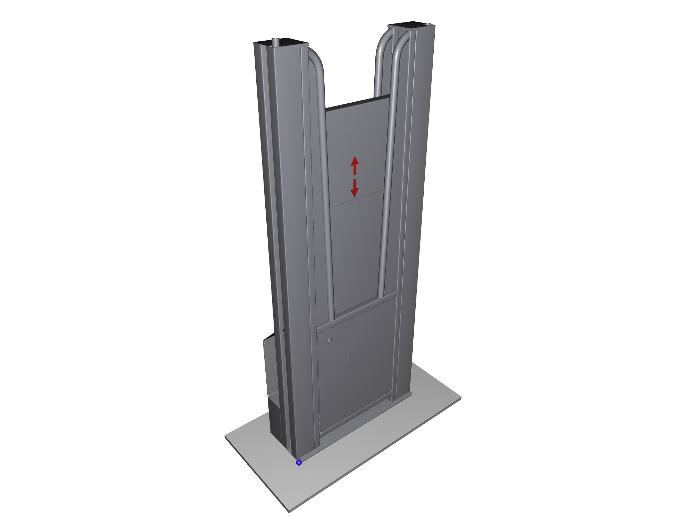

    Single horse feeder for forage - works by time

    SINGLE

    For small groups, integration bays and night bays.

    • 1x feed station

    • Width x height: 808 x 2000 mm

    • Operates at 12 volts

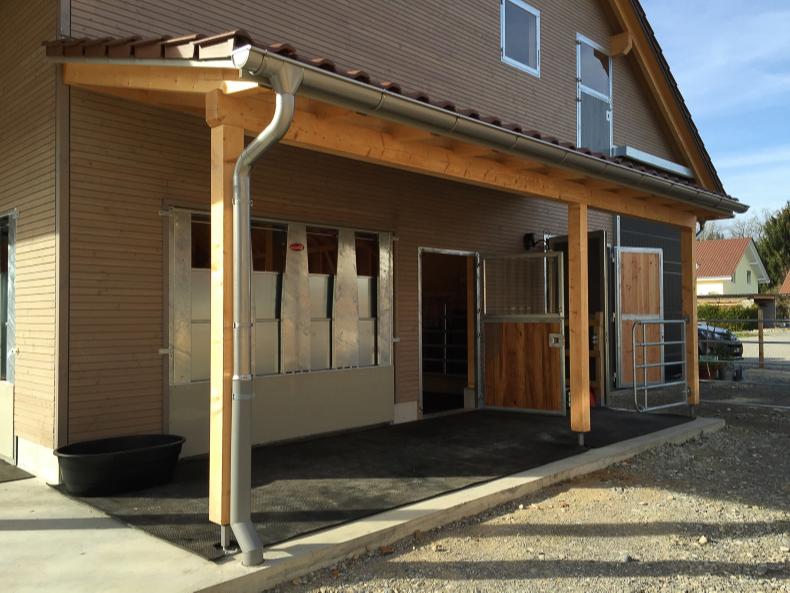

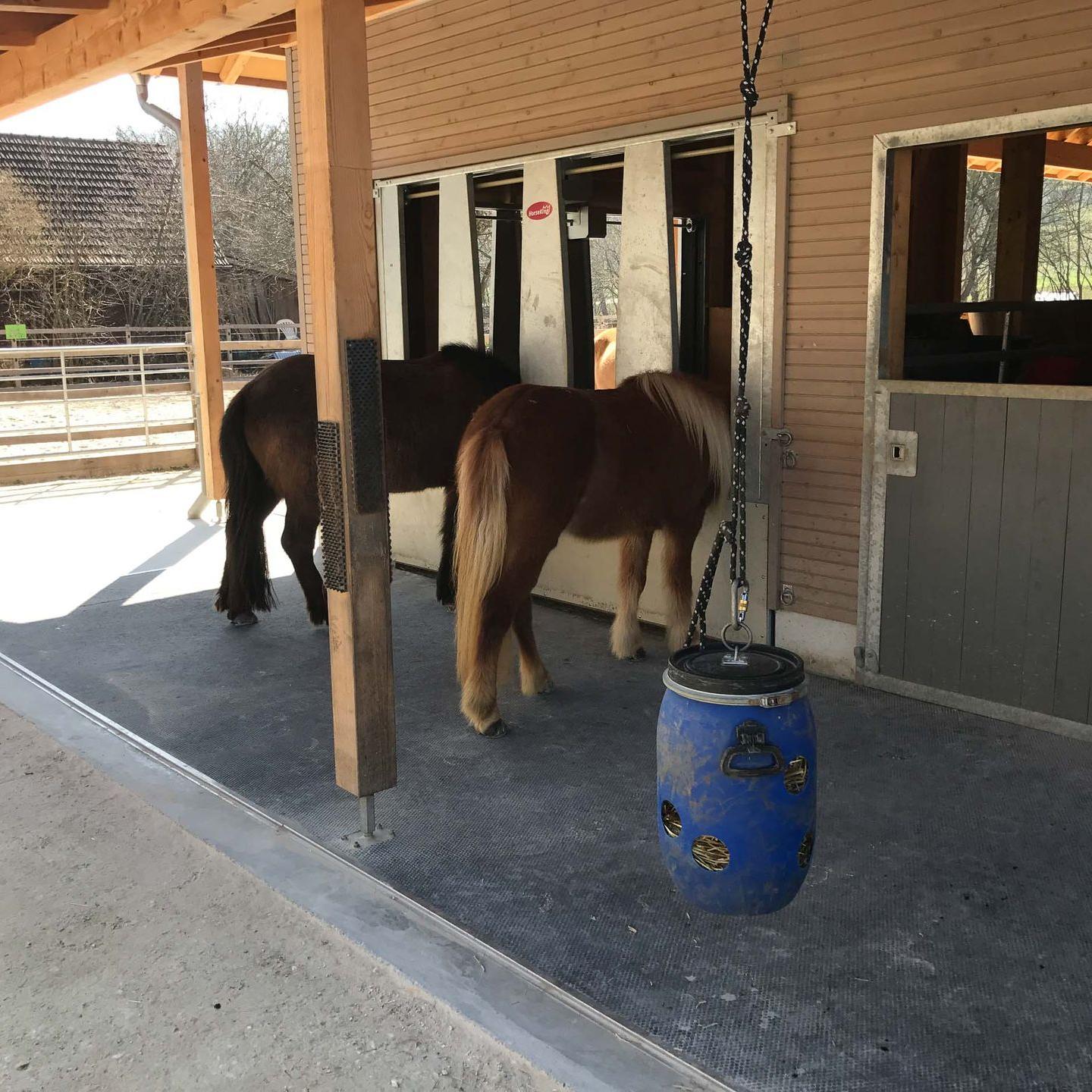

    Maxi horse feeder for 4 horses to feed at once

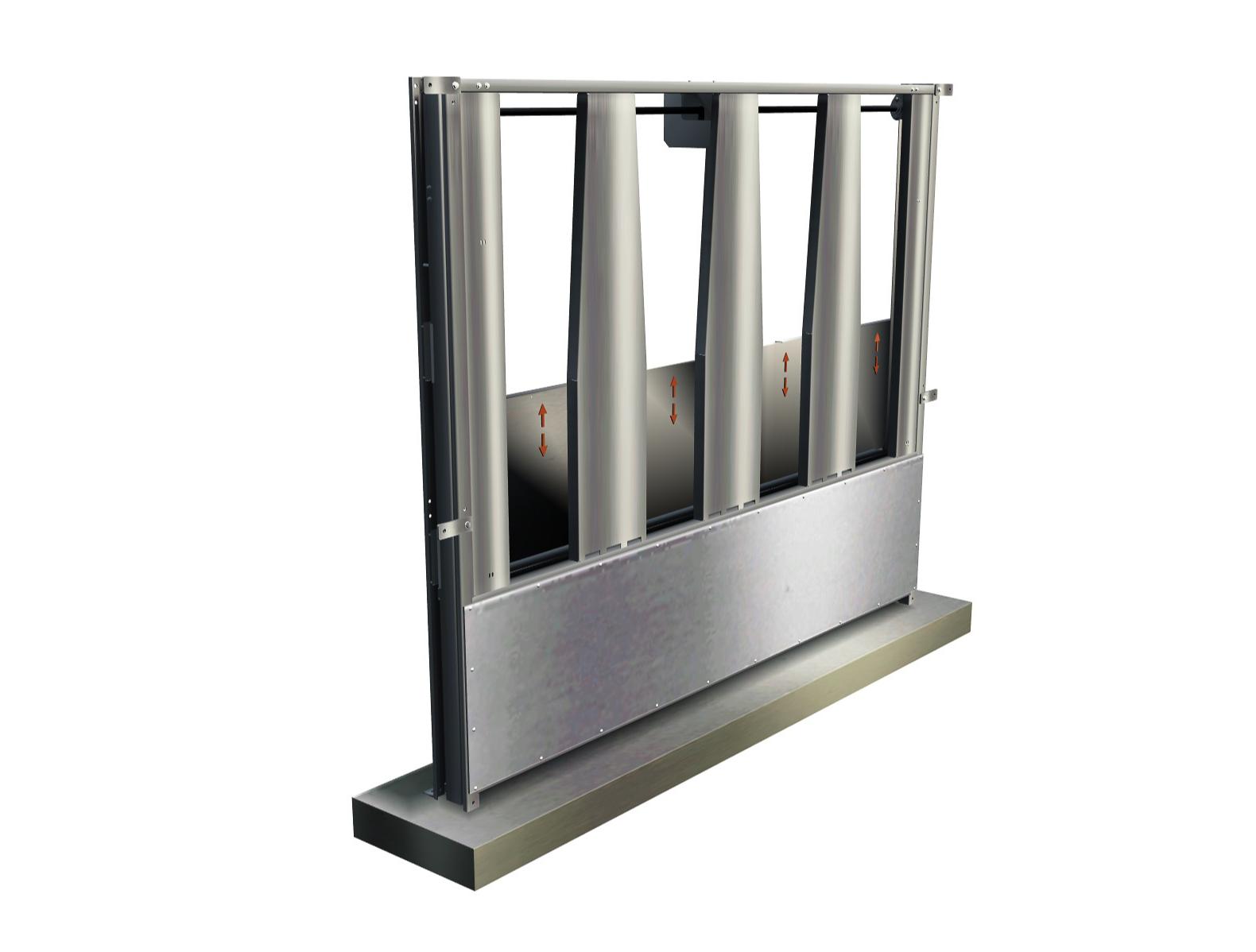

    MAXI

    For larger groups, integration bays and night bays

    • 4x time controlled feed stations

    • Width x height: 2950 x 2400 mm

    • Operates at 12 volts



    Concentrate Feeding

    Time controlled concentrate feeding - ideal for individual horses.

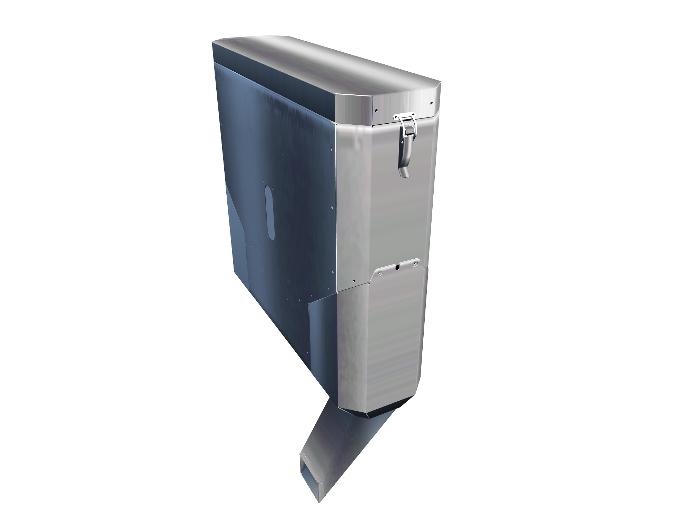

    K 1-40

    For stables, integration bays and night bays.

    • 1x 40-litre capacity storage

    • Galvanised steel housing

    • Includes feed chute and fittings

    • Operates at 12 volts

    K 1-40 stable feeder for concentrates
    Feeding  Rack
    Non automated feeding of forage
    • Suitable for large groups of horses

    • Various sizing available for ponies and horses

    • Galvanised frames and dividers

    Ask a Question

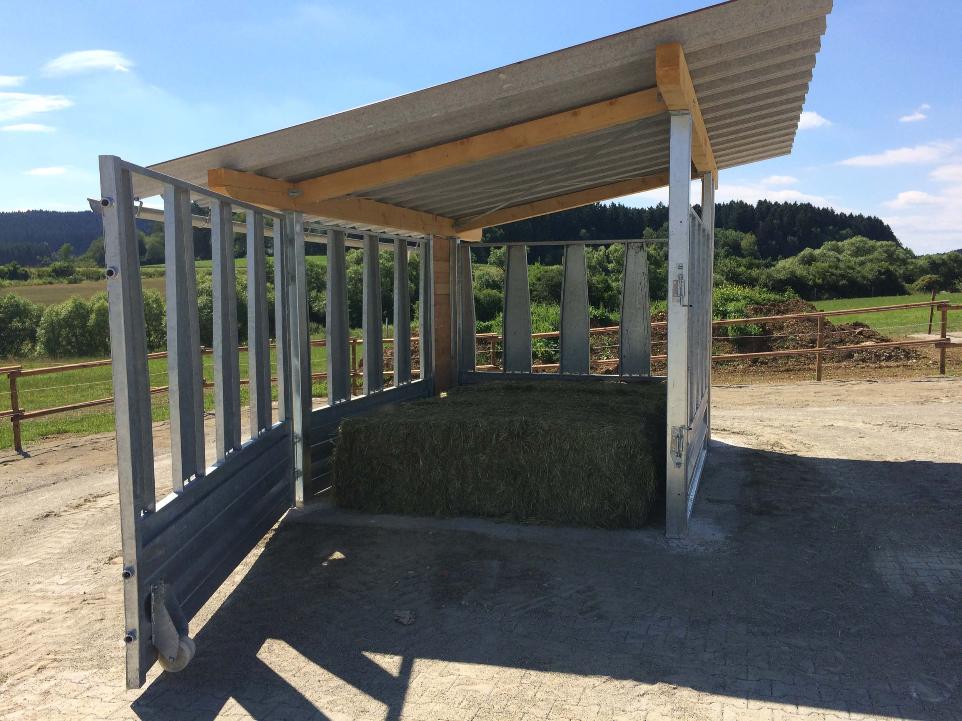

    Outdoor covered horse feeder with opening sides

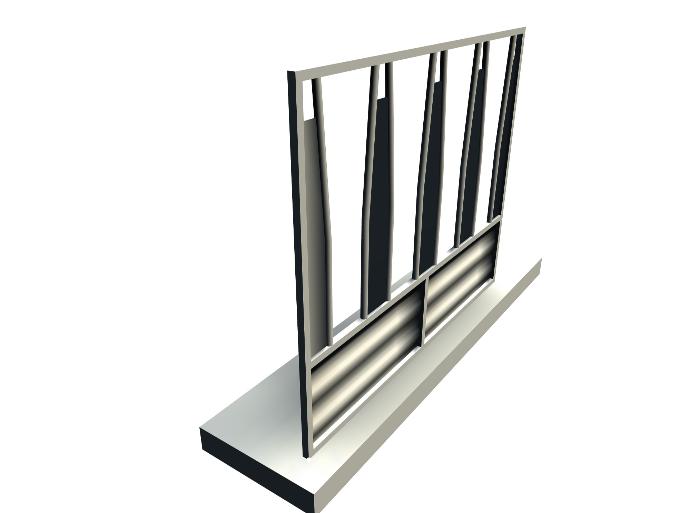

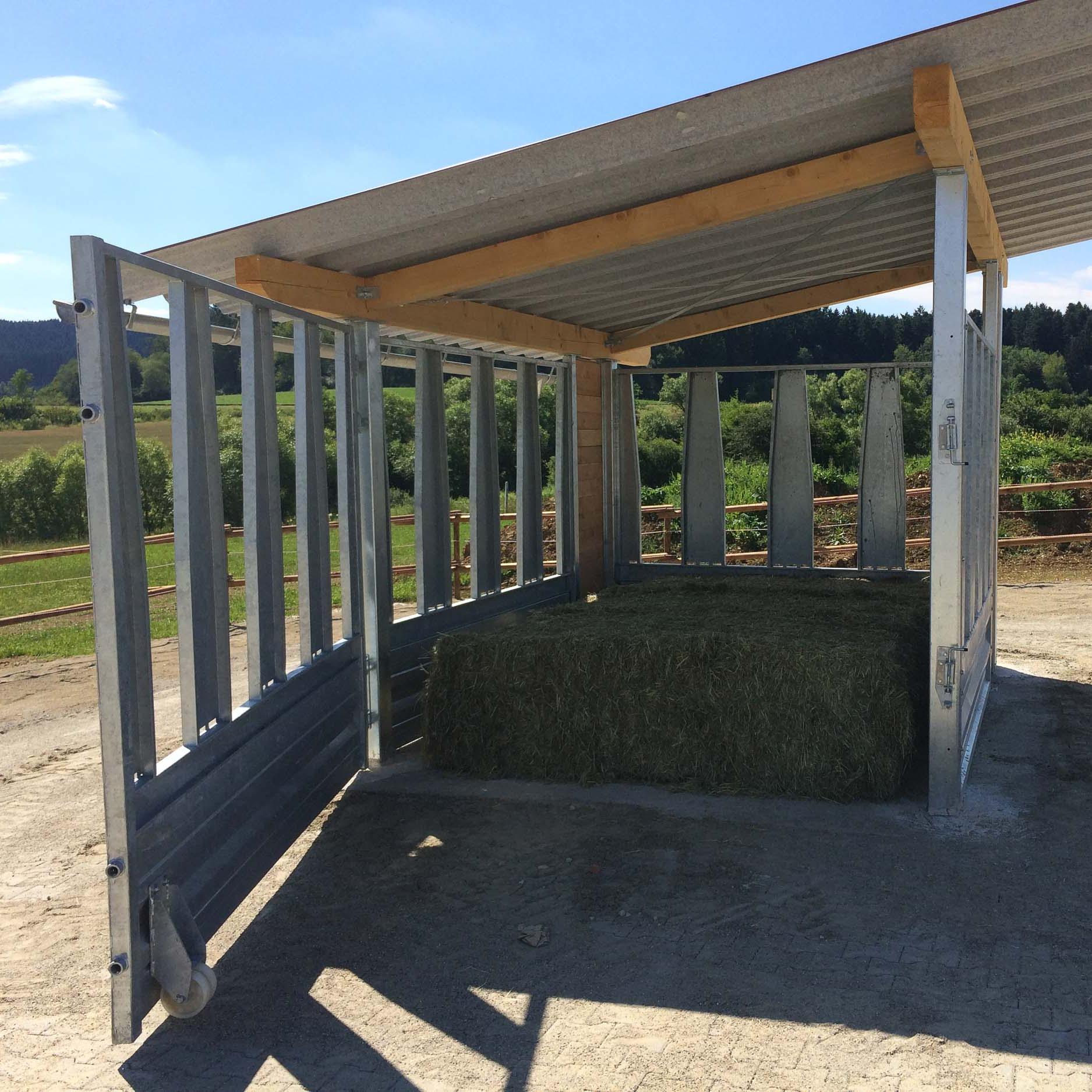

    Feed Rack SAFETY

    Non-automatic feeding of forage.

    • 4x feeding stations per rack

    • Width x height: 3000 x 2400 mm

    • Various installation options (modular)

    • Can be also used as a gate.

    • Ideal for use in combination with slow feed nets

    Drawing of the feed rack safety feeder

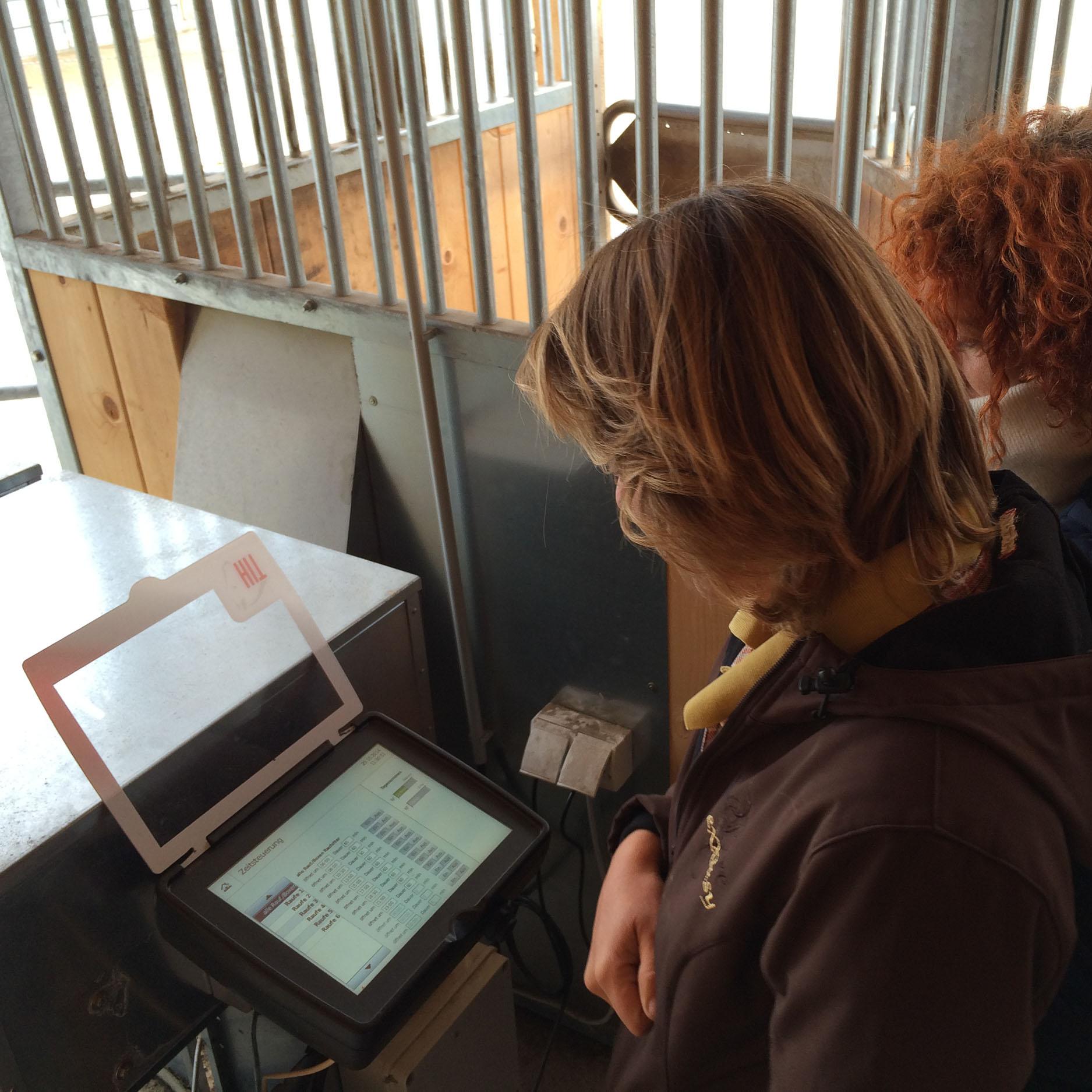

    Active Stable operators adjusting the feeding computer
    Feeding  Computer
    Centralised feeding computer to control all the stations in the Activestable.
    • Works to control transponder and time operated stations
    • Touch screen interface
    • Network compatible
    • Can be operated by PC or smartphone
    • Very user-friendly
    • In-depth feeding analysis software - HoCockpit
    •  Remote maintenance for service

    Ask a Question
